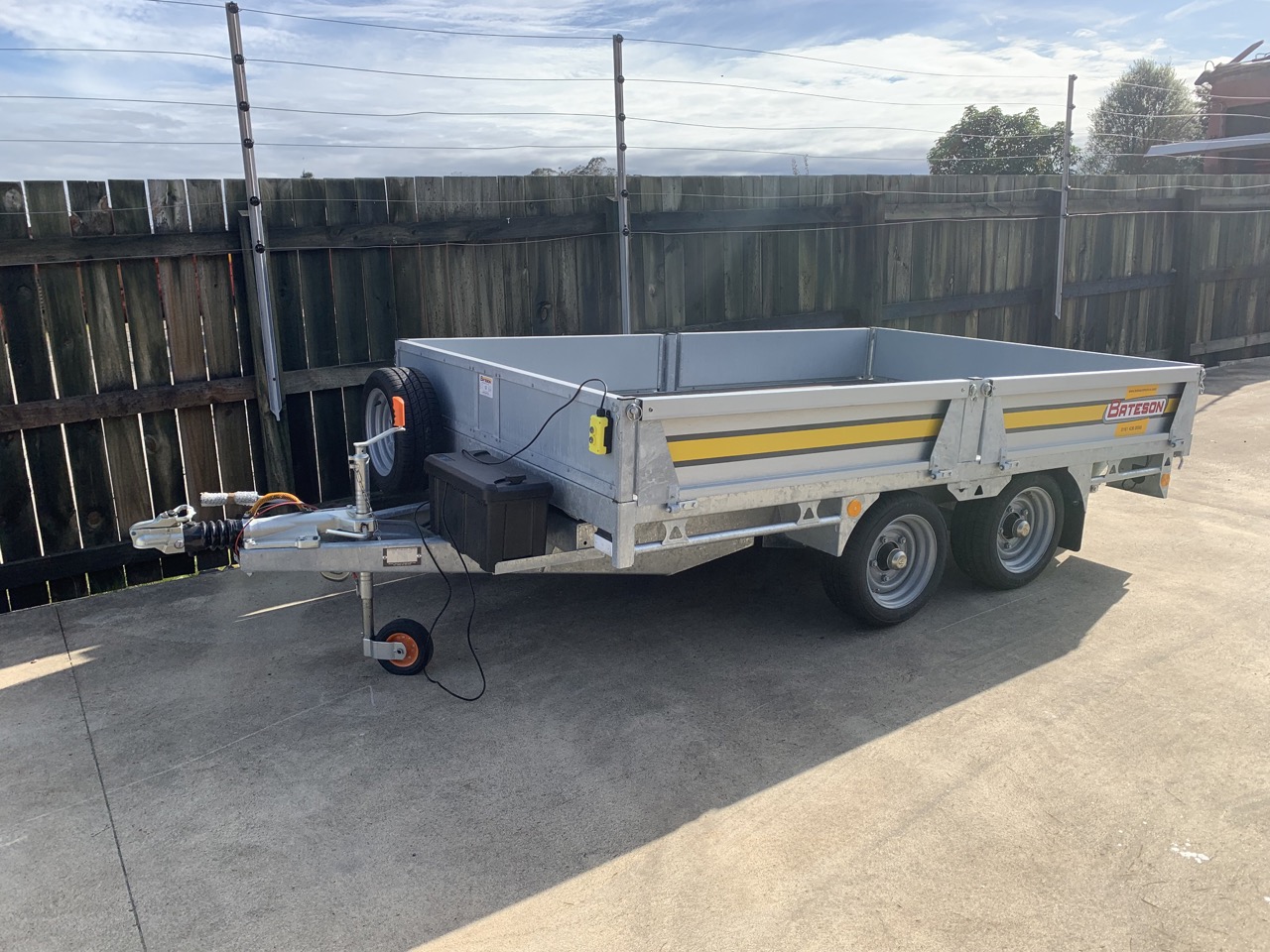

353H is our largest tipping trailer, At the legal maximum 3500kg it has a good capicity. The 10 feet long body, 6 feet 6 inches wide is very stable when tipped and does not put too much load on the back of the trailer, lifting the towing vehicle, It is not advisable to have a longer or narrower tipping trailer, at this weight, which could be unsafe if used at the maximum load.

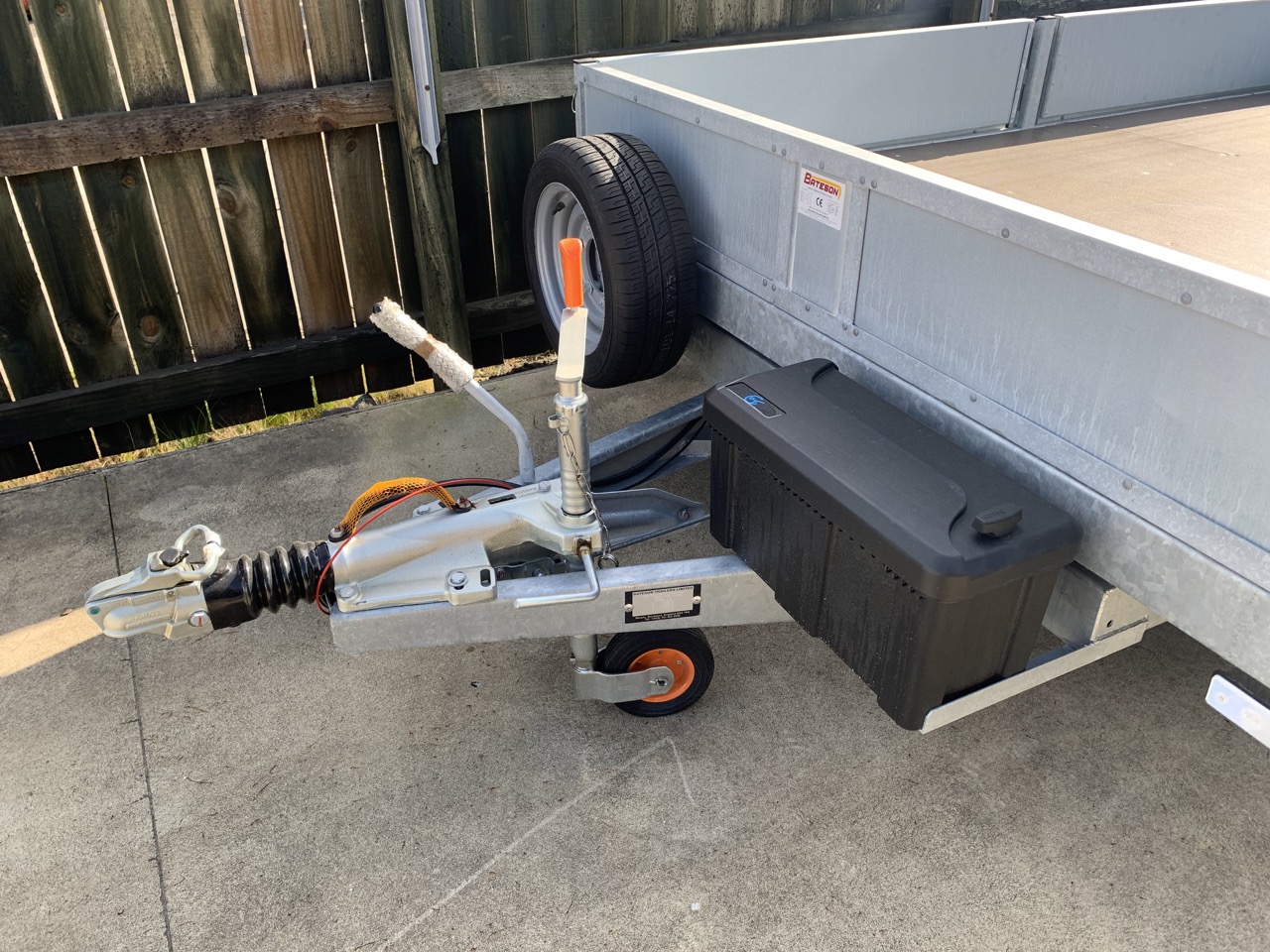

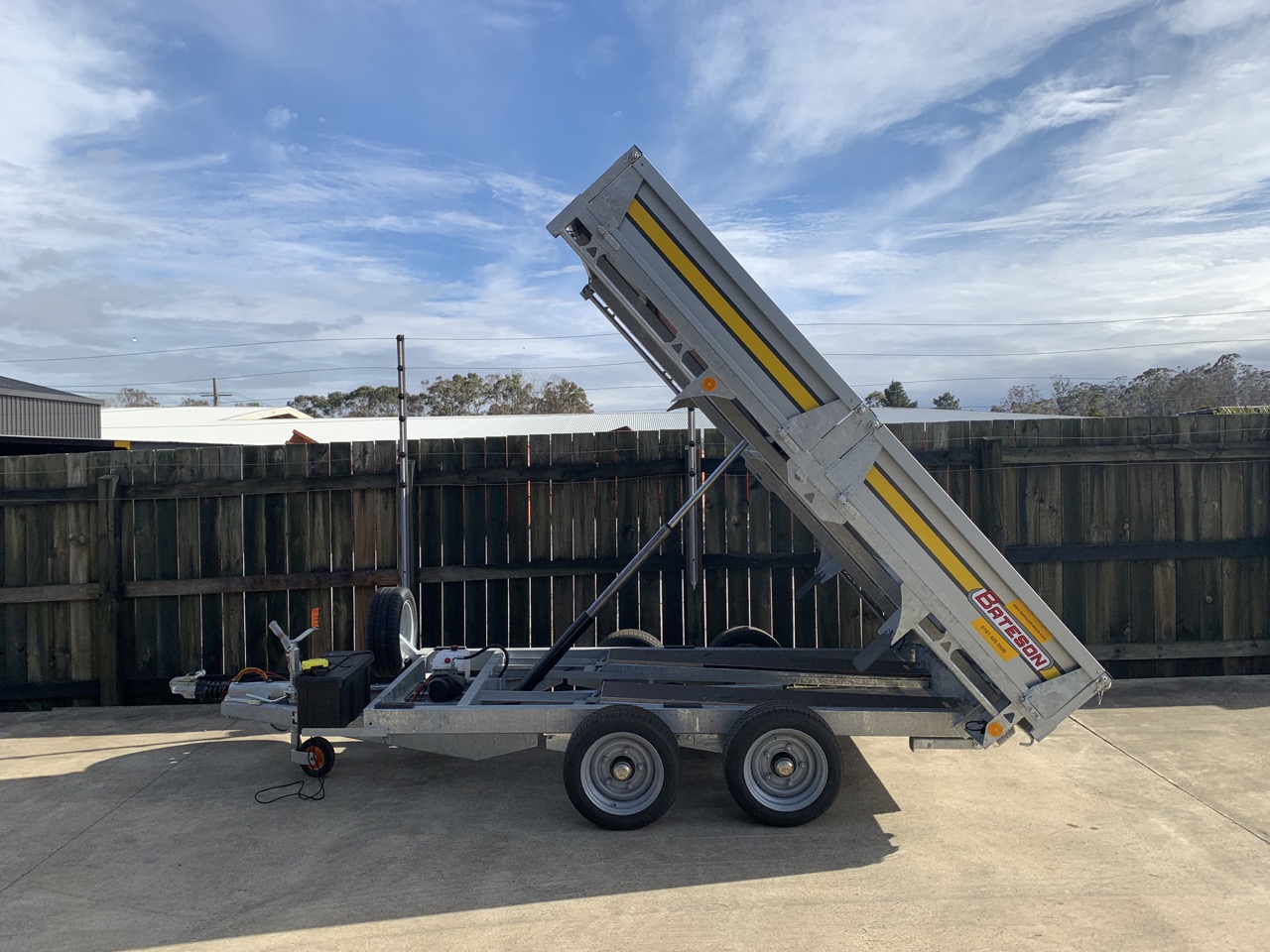

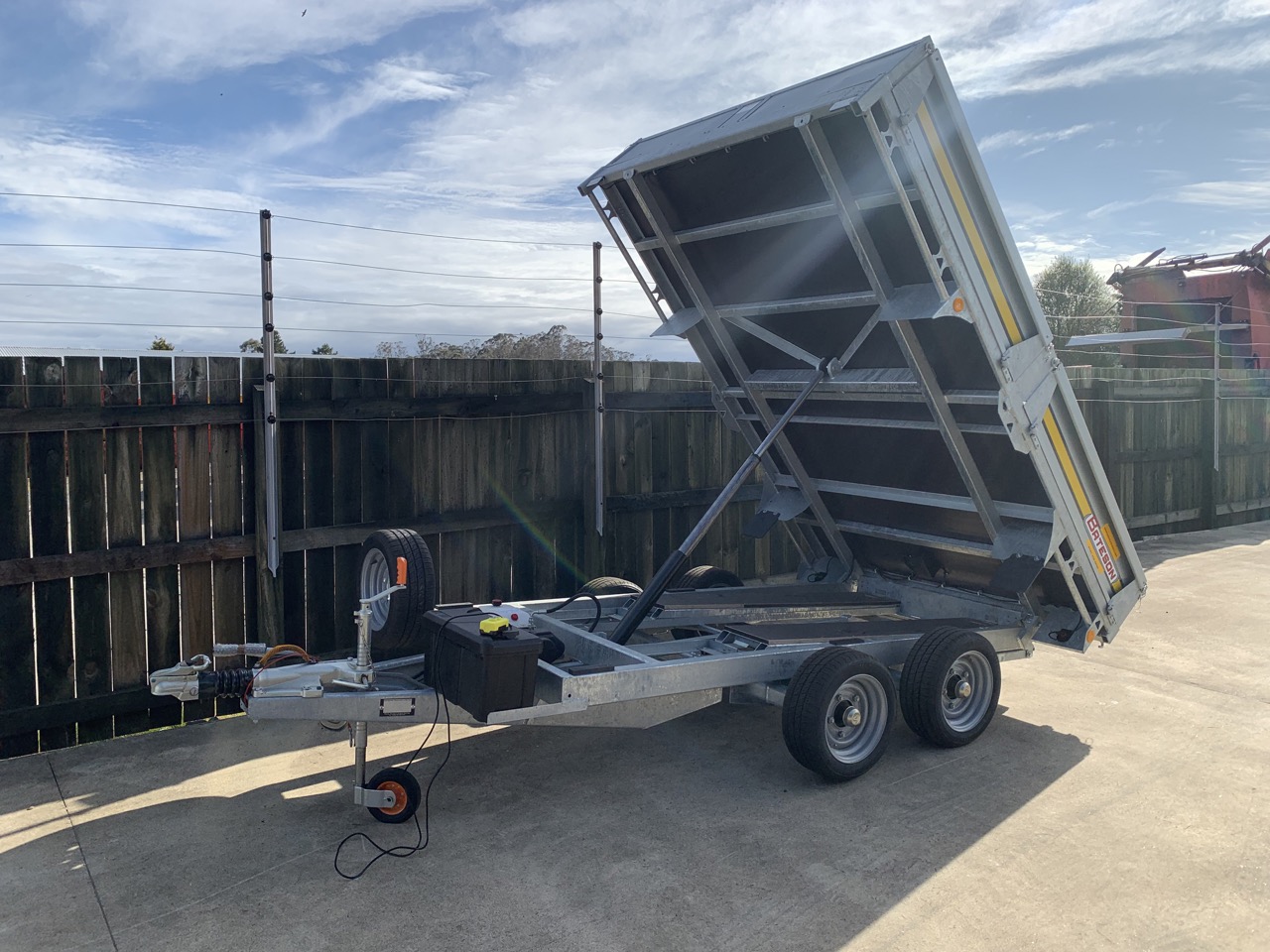

Twin 1800kg Avonride axles have large 250mm auto-reversing brakes and low profile 195 x 13 tyres offering a low centre of gravity and low loading height. The trailer is tipped by a two stage cylinder operated by a 12v electric pump with a remote control stored in a lockable battery box.

The pump can be powered from the towing vehicle via twin power leads and a heavy duty two pin plug, or from its own battery (not supplied), which can be charged from the towing vehicle via the optional grey 7 pin auxillary plug.

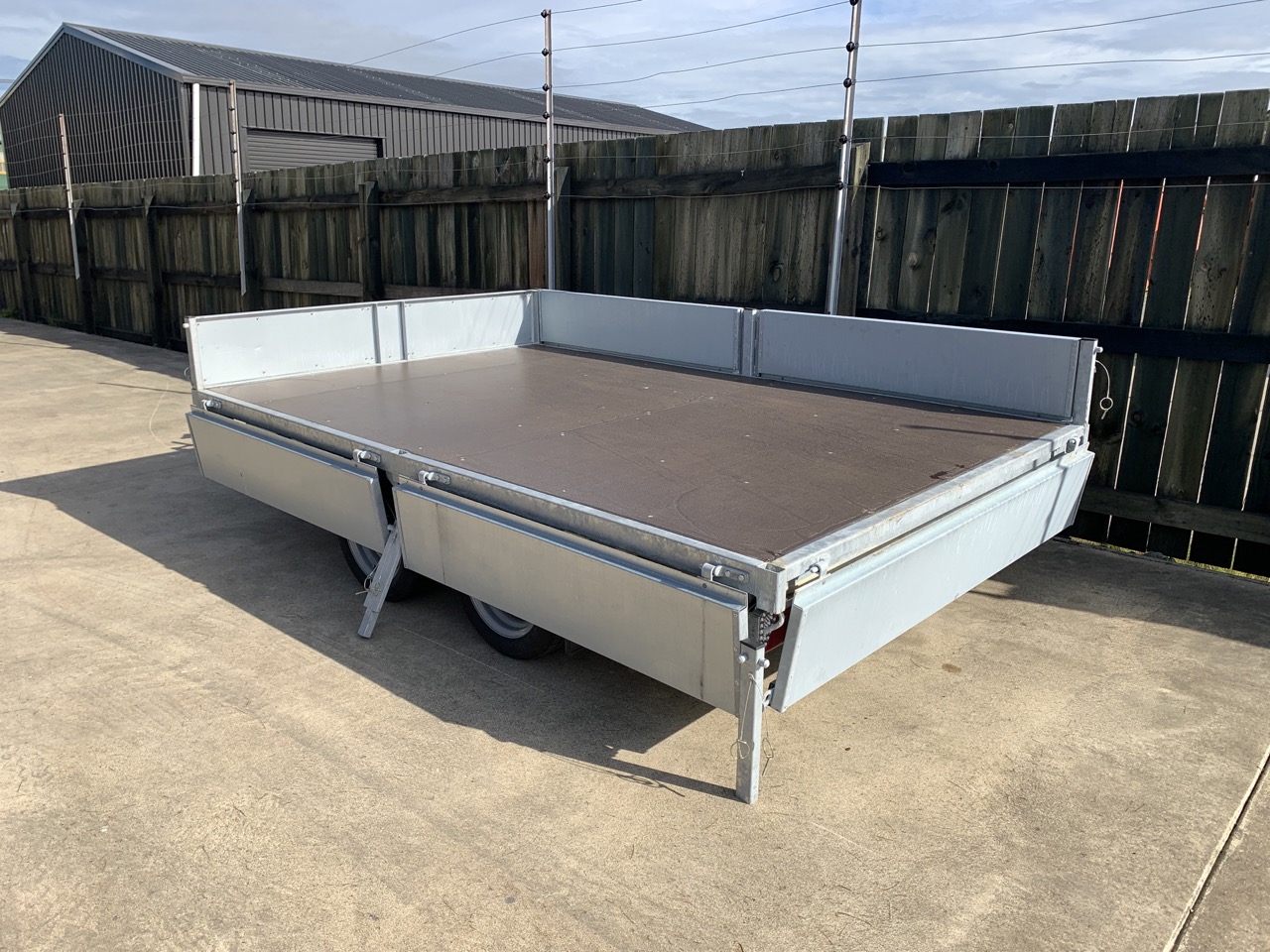

30cm steel hinged sides and a spare wheel are standard and mesh extension sides with twin rear gates are available as an option.

Dimensions and weights correct at time of writing, subject to change without notice, please contact us if these are critical.

Overall

Dimensions and weights correct at time of writing, subject to change without notice, please contact us if these are critical.

Internal

Dimensions and weights correct at time of writing, subject to change without notice, please contact us if these are critical.
